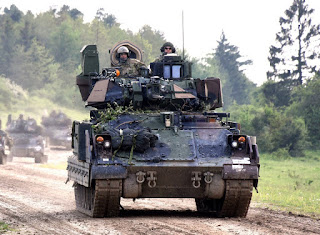

The Bradley Fighting Vehicle (BFV) is a fighting vehicle platform of the United States manufactured by BAE Systems Land & Armaments, formerly United Defense. It was named after U.S. General Omar Bradley.
The Bradley is designed to transport infantry or scouts with armor protection, while providing covering fire to suppress enemy troops and armored vehicles. The several Bradley variants include the M2 Bradley infantry fighting vehicle and the M3 Bradley cavalry fighting vehicle. The M2 holds a crew of three (a commander, a gunner, and a driver) along with six fully equipped soldiers. The M3 mainly conducts scout missions and carries two scouts in addition to the regular crew of three, with space for additional BGM-71 TOW missiles. The Red River Army Depot in Texarkana, Texas, is the Center of Industrial Technical Excellence for the maintenance and repair of the Bradley system.
Design[edit]
The Bradley was developed largely in response to the Soviet BMP family of infantry fighting vehicles, and to serve as both an armored personnel carrier, and a tank-killer. One specific design requirement was that it should be as fast as the then new M1 Abrams main battle tank so they could maintain formations while moving.
Armament[edit]
The M2/M3's primary armament is a 25 mm cannon that fires either 100 or 300 rounds per minute and is accurate up to 3,000 m, depending on the ammunition used. It is also armed with a TOW missile launcher that is capable of carrying two loaded missiles. The missiles, capable of destroying most tanks to a maximum range of 4,000 metres (13,000 ft), can only be fired while the vehicle is stationary. The Bradley also carries a coaxial 7.62 mm medium machine gun, located to the right of the 25 mm chain gun.
Primary[edit]
The Bradley is equipped with the 25 mm M242 Bushmaster as its main weapon. The M242 is a single-barrel chain gun with an integrated dual-feed mechanism and remote feed selection.[1] The cannon has 300 rounds of ammunition in two ready boxes (one of 70 rounds, the other of 230 rounds), with an extra 600 rounds in storage for the M2 Infantry Fighting Vehicle variant or 1,200 stowed rounds for the M3 Cavalry Fighting Vehicle variant. The two ready boxes allow a selectable mix of rounds, such as the M791 APDS-T (Armor-Piercing Discarding Sabot (with) Tracer) and M792 HEI-T (High Explosive Incendiary (with) Tracer) rounds. The tungsten APDS-T rounds proved highly effective in Desert Storm, being capable of knocking out many Iraqi vehicles, including several kills on T-55 tanks. A few kills against Iraqi T-72 tanks at close range have been reported.[4] Subsequent ammunition developments resulted in the M919 APFSDS-T (Armor-Piercing Fin Stabilized Discarding Sabot with Tracer) round, which contains a finned depleted uranium penetrator similar in concept to armor-piercing munitions used in modern tanks. The M919 was used in combat during the 2003 invasion phase of Operation Iraqi Freedom.
Secondary[edit]
It is also armed with an M240C machine gun mounted coaxially to the M242, with 2,200 rounds of 7.62 mm ammunition. For engaging heavier targets (such as when acting in an antitank fashion), the Bradley has a TOW missile system on board, which was changed to fire TOW II missile from the M2A1 model onwards. M2 infantry Bradleys also have firing ports for a number of M231 Firing Port Weapons (FPWs), providing a means for the occupants to fire from within the vehicle and replacing the top-side gunners on the M113-based Armored Cavalry Assault Vehicles, though the M231 is rarely employed. Initial variants had six ports, but the side ones were plated over with the new armor configuration on the A2 and A3 variants, leaving only the two rear-facing mounts in the loading ramp. No versions of the M3 CFV carry firing port weapons, though early versions had all six firing port mounts fitted and plated over, while newer versions retain the two-ramp mounted firing ports, though again plated over.
Countermeasures[edit]
The use of aluminum armor and the storage of large quantities of ammunition in the vehicle initially raised questions about its combat survivability. Spaced laminate belts and high-hardness steel skirts have been added to improve the side protection of later versions, although this increases overall weight to 33 tons. In friendly fire incidents in Desert Storm, many crew members survived hits that resulted in total losses for lighter U.S. Marine Corps LAV-25 vehicles.[citation needed]
All versions are also equipped with two four-barreled smoke grenade launchers on the front of the turret for creating defensive smoke screens, which can also be loaded with chaff and flares.
Bradley Urban Survival Kit[edit]
The Bradley Urban Survival Kit (BUSK) is an upgrade similar to the M1 Abrams TUSK kit. It decreases the vulnerability of Bradleys in urban threat environments.[5] The kit includes a more powerful spotlight, a wire mesh protector to keep the optics from getting scratched, and nonconductive arched strips of nylon that push away fallen electrical wires (power line protection) that would endanger crews, additional armor on the underside, and a bullet-resistant transparent shield for the commander outside the turret. It also includes sensors and a software package to quickly detect when components are wearing out and simulation software so the gunners could train more realistically. The BUSK kit adds 3 tons to the vehicle's weight. Because of this, a major upgrade was planned. Additional upgrades included a stronger, 800-horsepower engine, a larger main gun, lighter armor, improved sensors and cameras to give a 360° view outside, and an improved fire extinguisher system. This system was supposed to enter service in 2012, but the Bradley became too heavy and the kit did not make it survivable enough.[6] A newer BUSK III kit is now available for Bradleys incorporating a blast-proof fuel cell, a blast-resistant driver seat, a turret survivability system, and an emergency ramp release. This kit was recently installed on 236 M2A3 Bradleys in South Korea and is scheduled next to be added to Bradleys of the 4th Infantry Division.[7]
Mobility[edit]
The Bradley is highly capable in cross-country open terrain, in accordance with one of the main design objectives of keeping pace with the M1 Abrams main battle tank. The Bradley was initially designed to float by deploying a flotation curtain around the vehicle, allowing it to "swim" at a speed of 4.5 mph(7.2 km/h). Later armor upgrades have negated this capability.[8]
History[edit]
Development[edit]
One of the early issues that drove the development of the infantry fighting vehicle (IFV) was the need to have a vehicle that could serve in a high-intensity conflict in Europe, which was feared might include the use of nuclear, biological or chemical (NBC) type weapons. To work in such an environment, an IFV would have to have a life-support system that protected from outside contaminants while allowing the soldiers to fight from inside the vehicle. The earliest specification, from 1958, called for a vehicle of no more than 8 tons, mounting a turret with a 20 mm autocannon and a 7.62 mm machine gun, with sealed firing ports for five infantry gunners.[9]
The first U.S. Army IFV design was the XM734, a modified version of the M113. A commander's cupola and passenger firing ports were added. The second design was the XM765 Armored Infantry Fighting Vehicle, based on the M113A1 chassis. The upper sides of the vehicle were sloped and spaced steel armor plates were added to improve protection. In addition, firing ports for the passengers were added and a M139 20 mm cannon was added to the commander's cupola.[9]
In 1963, the U.S. and West German governments began work on the MBT-70 design and an IFV companion project named the Mechanized Infantry Combat Vehicle (MICV-70).[9] The contract was handed to the Pacific Car and Foundry Company, which delivered the XM701 prototype in 1965. The prototypes had the following characteristics: weight of 25–27 tons (depending on an aluminum or steel hull); 425 HP diesel engine; a two-man turret with a 20 mm gun & 7.62 mm MG; crew of three plus nine infantry equipped with firing ports; a built-in toilet; armor that was proof against Soviet 14.5 mm MG fire beyond a certain range; a collective and overpressure CBR system; amphibious.[9] The filtration system provided a shirt-sleeve environment until the passengers dismounted, after that they could not repressurize without fear of contamination, but they could plug their suits into the vehicle's filtration system. The vehicle was 9 ft (2.7 m) high, 20 ft (6.1 m) long, and 10 ft (3.0 m) wide. After testing, the vehicle was criticized for its poor mobility and excessive weight and size; it could not be carried aboard a C-130 or a C-141 Starlifter). New specifications were written in 1965.
In 1967, the public display of the BMP-1 caused additional interest in the MICV-70 program, which concluded its studies in 1968. However, continued disagreements on specifications continued to slow down development.[9]
At this time, the Army looked at two alternate vehicles that could be fielded more quickly. The FMC company had developed an IFV version of the M113, which had a one-man turret mounting a 25 mm gun, a sealed environment, and firing ports. The vehicle weight was 15 tons. The U.S. Army rejected it due to limited mobility, which would have prevented it from keeping pace with the proposed MBT-70. However, the design was purchased by the Dutch and Belgian governments.[9] The other alternate vehicle was the West German Marder, which mounted a 20 mm autocannon, two 7.62 mm MGs, relatively strong steel armor, and full CBR protection. The U.S. Army rejected it due to it not being amphibious, too large and heavy for air transport, and too expensive.[9]
The MICV program continued on, and in 1972, a new request for proposals was issued. This was won by FMC, which began construction of the XM723 prototype, which was completed in 1973. The XM723 weighed 21 tons, had spaced aluminum armor proof against 14.5 mm fire, had a crew of three plus eight infantry, firing ports for the infantry, and a one-man turret with a 20 mm gun. The commander sat inside the hull. To adapt the XM723 to be usable in a reconnaissance role, as well as an IFV, the turret was replaced in 1976 with a two-man turret mounting a 25 mm Bushmaster cannon and TOW missiles (this was the MICV TBAT-II design). A two-man turret design put the commander in a position with a better view of the battlefield. The TOW missiles give the vehicle a strong antiarmor capability. The value of antitank missiles had been well established in the 1973 Yom Kippur war. The added political advantage was that the TOW missiles made it an easier sell to Congress, as it was a new capability not possessed by the M113.[9]
In 1977, the MICV TABA-II was renamed the XM2. The scout version became the XM3. The U.S. Congress was questioning the development of the XM2 due to the high losses incurred by BMP-1s in the 1973 war and suggested the development of a more heavily armored vehicle. The Army argued against this due to concerns about cost, weight, and development time.
In 1977, Congress ordered two new evaluations of the IFV program, one by the Government Accountability Office (GAO) and one by the Department of the Army, under General Pat Crizer. The GAO report was critical of the XM2's height, mobility, complexity, lack of clear doctrinal use, and lack of chemical/biological/radiological protection. Based upon this criticism, the OMB deleted M2/3 funding from the budget for the 1979 financial year.[10] In 1978, the Crizer report asserted that the basic design was consistent with doctrine and development of an IFV with superior characteristics would be costly and pose significant developmental risks.[10] An additional study, the IFV/CFV Special Study Group, evaluated whether an improved version of the M113 could be used instead of the M2/3 IFV. Their conclusion was that extensive redesign would be necessary for even marginal improvements in M113 derivatives.[10] In October 1978, Congress reauthorized procurement funds.
The XM2/3 passed the Army Systems Acquisition Review Council Milestone II review in 1979 and final approval for production came from the Secretary of Defense on 1 February 1980. In October 1981 the vehicle was named the "Bradley" for World War II Army General Omar Bradley, who had died earlier that year.[11]
In 1993, one of the military inspectors, Col. James G. Burton, released his book The Pentagon Wars: Reformers Challenge the Old Guard, exposing from within how the Army had falsified test results during the development.[12][13] The book is adapted to the TV movie The Pentagon Wars in 1998.
Production history[edit]
The Bradley consists of two types of vehicles, the M2 Infantry Fighting Vehicle and the M3 Cavalry Fighting Vehicle. The M3 CFV was originally planned to be named after General Jacob L. Devers,[10] but it was decided the Bradley name would apply to both, since both vehicles are based on the same chassis (they differ in only some details). The M2 carries a crew of three and a six-man infantry squad. The M3 carries the crew of three and a two-man scout team and additional radios, TOW and Dragon or Javelin missiles.
Even after the troubled development history of the Bradley[14] additional problems occurred after production started as described in a book by Air Force Col. James Burton,[15] Burton advocated the use of comprehensive live-fire tests on fully loaded military vehicles to check for survivability. The Army and Navy agreed and established the joint live fire testing program in 1984.[10]
When testing the Bradley, however, disagreements occurred between Burton and the Aberdeen Proving Ground's Ballistic Research Laboratory, which preferred smaller, more controlled, "building block" tests. They claimed such limited (and according to Col. Burton, completely unrealistic) testing would "improve the databases used to model vehicle survivability", as opposed to full tests with random shots that would provide a far more accurate picture of its performance under real battlefield conditions, but produce less useful statistical data.[10] In addition, Burton insisted on a series of "overmatch" tests in which weapons would be fired at the Bradley that were known to be able to easily penetrate its armor, including Russian ordnance. Burton saw attempts to avoid such tests as dishonest, while the BRL saw them as wasteful, as they already knew the vehicle would fail.[10] The disagreements became so contentious that Congressional inquiry resulted. As a result of the tests, additional improvements to vehicle survivability were added.
The first combat unit to be equipped with Bradleys (four M2s and six M3s), in March 1983, was the 1st Battalion, 41st (Mechanized) Infantry, 2nd Armored Division.[16] Several years later, the unit commander, Lt. Col Franklin W. Trappnell, Jr., became the Army's system manager for the Bradley program.[17]
As of May 2000, 6,724 Bradleys (4,641 M2s and 2,083 M3s) had been produced for the U.S. Army. The total cost of the program as of that date was $5.7 billion, and the average unit cost $3.2 million.[18]
Combat history[edit]
During the Gulf War, M2 Bradleys destroyed more Iraqi armored vehicles than the M1 Abrams.[20] A total of 20 Bradleys were lost—three by enemy fire and 17 due to friendly fire incidents; another 12 were damaged. The gunner of one Bradley was killed when his vehicle was hit by Iraqi fire, possibly from an Iraqi BMP-1, during the Battle of 73 Easting.[21] To remedy some problems that were identified as contributing factors in the friendly fire incidents, infrared identification panels and other marking/identification measures were added to the Bradleys.
In the Iraq War, the Bradley proved vulnerable to improvised explosive device and rocket-propelled grenade attacks, but casualties were light with the crew able to escape. In 2006, total losses included 55 Bradleys destroyed and some 700 others damaged.[22][23] By 2007, the Army had stopped using the M2 Bradley in combat, instead favoring more survivable MRAPs.[6] By the end of the war, about 150 Bradleys had been destroyed.[24]
Replacement[edit]
The U.S. Army first intended to replace the Bradley as part of the Future Combat Systems Manned Ground Vehicles program, which started in 1999 and was cancelled in 2009. In 2010, the army started the Ground Combat Vehicle program to replace the Bradley with the GCV Infantry Fighting Vehicle, but the GCV was cancelled in 2014. Informal discussions for the next follow-up effort were dubbed as the Future Fighting Vehicle (FFV);[25] in May 2015, General Dynamics and BAE Systems, the two prime contractors involved with the GCV, were awarded contracts to develop design concepts for the FFV.[26][27] The Next Generation Combat Vehicle (NGCV) effort is planned to test "at least two" prototypes by 2022 in order to field a new armored vehicle by 2035. Several concepts are being examined, including emphasizing maneuver capability over blast protection and splitting up the squad into more than one vehicle.[28][29][30][31][32] In 2018, the NGCV team was soliciting industry feedback for an Optionally manned fighting vehicle (OMFV).[33] The Army is also seeking first access to commercial self-driving cars.[34]
Variants[edit]
M2 Bradley[edit]
The Bradley is equipped with the M242 25 mm autocannon as its main weapon. The M242 has a single barrel with an integrated dual-feed mechanism and remote feed selection.[3] The gun has 300 ready rounds in two ready boxes (one of 70 rounds – usually AP-type rounds, the other of 230 rounds – usually HE-type rounds), with another 600 rounds in storage. The two ready boxes allow a selectable mix of rounds, such as the M791 APDS-T (Armor-Piercing Discarding Sabot (with) Tracer), and M792 HEI-T (High Explosive Incendiary (with) Tracer) rounds. The 25 mm automatic gun is primarily used for clearing bunkers and firing on lightly armored vehicles. While the 25 mm automatic gun is not the weapon of choice for engaging tanks, vehicle commanders, crews, and CALL and Army Infantry Center personnel reported isolated instances in which the 25 mm automatic gun had killed tanks. However, Army Materiel Systems Analysis Activity (AMSAA) officials stated that, on the basis of their assessment of combat vehicles in the Persian Gulf war, for the 25 mm automatic gun to kill a tank, the tank would have to be hit at close range in its more vulnerable areas.[4] Subsequent ammunition developments resulted in the M919 APFSDS-T (Armor-Piercing Fin Stabilized Discarding Sabot with Tracer) round, which contains a finned depleted-uranium penetrator similar in concept to armor-piercing munitions used in modern tanks. The M919 was used in combat during the 2003 invasion of Iraq.
It is also armed with an M240C machine gun mounted coaxially to the M242, with 2,200 rounds of 7.62 mm ammunition. For engaging heavier targets (such as when acting in an anti-tank fashion), the Bradley has a TOW missile system on board, which was changed from the M2A1 model onwards to fire TOW II missiles. M2 infantry Bradleys also have turreted firing ports for a number of M231 Firing Port Weapons or FPWs, providing a button-up firing position to replace the top-side gunners on the old ACAV, though the M231 is rarely employed. Initial variants carried six, but the side ports were plated over with the new armor used on the A2 and A3 variants, leaving only the two rear-facing mounts in the loading ramp.
Countermeasures[edit]
The use of aluminum armor and the storage of large quantities of ammunition in the vehicle initially raised questions about its combat survivability. Spaced laminate belts and high hardness steel skirts have been added to later versions to improve armor protection, although this increased overall weight to 33 tons. However, actual combat operations have not shown the Bradley to be deficient as losses have been few.[citation needed] In friendly fire incidents in Desert Storm, many crew members survived hits that resulted in total losses for lighter USMC LAV-25vehicles.[citation needed]
All versions are also equipped with two four-barreled smoke grenade launchers on the front of the turret for creating defensive smoke screens, which can also be loaded with chaff and flares.
In December 2018, the Army revealed it would be installing the Iron Fist on M2 Bradleys of one armored brigade as a near-term active protection system to enhance protection against anti-tank rockets and missiles.[5]
Chassis[edit]
The Bradley has a welded aluminum unit or monocoque structure to which the armor is attached, mostly on the outside. The suspension is by torsion bars and cranks. Six small rubber rimmed, divided road wheels on each side straddle the location flanges sticking up from the tread. These were originally of aluminum, but were changed to steel as vehicle weight increased. The steel treads sit on flat hard rubber tires.
Mobility[edit]
The Bradley is highly capable in cross-country open terrain, in accordance with one of the main design objectives of keeping pace with the M1 Abrams main battle tank. Whereas the M113 would float without much preparation, the Bradley was initially designed to float by deploying a flotation curtain around the vehicle. This caused some drownings due to failures during its first trials. Armor upgrades have negated this capability.
History[edit]
Production history[edit]
The M2, which was named after World War II General Omar Bradley, carries a crew of three and a six-man dismountable infantry squad.
Since entering service with the U.S. Army in 1981, 4,641 M2s have been produced.
Even after the troubled development history of the Bradley[6] additional problems occurred after production started as described in a book by Air Force Colonel James G. Burton,[7] Burton advocated the use of comprehensive live fire tests to be used against fully loaded military vehicles to check for survivability. The Army and Navy agreed and established the Joint Live Fire testing program in 1984.[8] When testing the Bradley, however, disagreements occurred between Burton and the Ballistic Research Laboratory (BRL) at Aberdeen Proving Grounds, which preferred smaller, more controlled, "building block" tests that could be used to improve the databases used to model vehicle survivability, as opposed to full up tests with random shots, which reduce the possibility of bias but produced little useful statistical data.[8] In addition, Burton insisted on a series of "overmatch" tests in which weapon systems would be fired at the Bradley that were known to be able to easily penetrate its armor. Burton saw attempts to avoid such tests as dishonest, while the BRL saw them as wasteful as they already knew the vehicle would fail.[8] The disagreements became so contentious that a Congressional inquiry was set up. As a result of the tests, additional improvements to vehicle survivability were added.
Combat history[edit]
During the Persian Gulf War, M2 Bradleys destroyed more Iraqi armored vehicles than the M1 Abrams.[9] Twenty Bradleys were lost—three by enemy fire and 17 due to friendly fire incidents; another 12 were damaged. The gunner of one Bradley was killed when his vehicle was hit by Iraqi fire, possibly from an Iraqi BMP-1, during the Battle of 73 Easting.[10] To remedy some problems that were identified as contributing factors in the friendly fire incidents, infrared identification panels and other marking/identification measures were added to the Bradleys.
In the Iraq War, the Bradley proved somewhat vulnerable to improvised explosive device (IED) and rocket-propelled grenade (RPG) attacks, but casualties were light—the doctrine being to allow the crew to escape at the expense of the vehicle. As of early 2006, total combat losses included between 55 and 150 Bradleys.[11][12] By 2007, the Army had stopped using the M2 Bradley in combat, instead favoring more survivable MRAPs.[13] By the end of the war, about 150 Bradleys had been destroyed.[14]
Replacement[edit]
The U.S. Army first intended to replace the Bradley as part of the Future Combat Systems Manned Ground Vehicles program, which started in 1999 and was cancelled in 2009. In 2010, the Army started the Ground Combat Vehicle program to replace the Bradley with the GCV Infantry Fighting Vehicle, but the GCV was cancelled in 2014. Informal discussions for the next follow-up effort have been dubbed as the Future Fighting Vehicle (FFV), but no official development has commenced.[15]
Variants[edit]
M2[edit]
The M2 was the basic production model, first fielded in 1981. The M2 can be identified by its standard TOW missile system, steel laminate armor, and 600 horsepower (450 kW) Cummins VT903 engine with HMPT-500 Hydro-mechanical transmission. Basic features also included an integrated sight unit for the M242 25 mm gun, and thermal imaging system. The M2 was amphibious with the use of a "swim barrier" or "flotation screen" and was transportable by C-141 Starlifter and C-5 Galaxy aircraft. All M2 vehicles have been upgraded to improved standards. The M2 armor protects the vehicle through a full 360 degrees against 14.5 mm armor-piercing incendiary (API) ammunition.
The turret was offset to the right to maximize the room in the passenger compartment. Six infantry soldiers for dismounted fighting were held in the passenger compartment. Vision for the troops was provided through three periscopes placed between the rear ramp and the cargo hatch just behind the turret, as well as two periscopes on each side of the hull above the side firing ports. The passenger compartment also held up to five TOW or Dragonmissile reloads. The side and rear hull armor consisted of two 0.25 in (6.4 mm) steel plates one inch apart and 3.5 in (89 mm) away from the aluminum armor. The hull top, bottom, and front consisted of 5083 aluminum armor, and 0.357 in (9.1 mm) steel armor was added to the front third of the hull bottom to increase mine protection.[16]
M2A1[edit]
Introduced in 1986, the A1 variant included an improved TOW II missile system, a Gas Particulate Filter Units (GPFU) NBC system, and a fire-suppression system. By 1992, the M2A1s had begun being remanufactured to upgraded standards. The GPFU system was only connected to the vehicle commander, driver, and gunner, while the infantry squad had to use their own from MOPP suits. A seventh infantryman was also added just behind the center of the turret.[16]
M2A2[edit]
Introduced in 1988, the A2 received an improved 600 horsepower (447 kW) engine with an HMPT-500-3 Hydromechanical transmission and improved armor (both passive and the ability to mount explosive reactive armor). The new armor protects the Bradley against 30 mm APDS rounds and RPGs (or similar anti-armor weapons). The new armor also eliminated the trim vane that made the Bradley amphibious and covered up the side firing ports. Spaced laminate armor was installed to the hull rear and spaced laminate track skirts protected the lower hull. A semicircular shield was attached to the turret rear to add more stowage space as well as act as spaced armor. Kevlar spall liners were added to critical areas. The troop carrying number was reduced to six, eliminating the periscope position behind the driver. After live firing testing, the seating and stowage arrangements were redrawn. These upgrades raised the cumulative gross weight of the vehicle to 30,519 kg (67,282 lb (30.037 long tons; 33.641 short tons)).[citation needed] The M2A2 was qualified to be transported by the C-17 Globemaster III. M2A2s were all eventually modified to M2A2 ODS or M2A3 standard.[16]
M2A2 ODS/ODS-E[edit]
The "Operation Desert Storm" and "Operation Desert Storm-Engineer" improvements were based on lessons learned during the first Gulf War in 1991. The major improvements included an eye-safe laser rangefinder (ELRF), a tactical navigation system (TACNAV) incorporating the Precision Lightweight GPS Receiver (PLGR) and the Digital Compass Systems (DCS), a missile countermeasure device designed to defeat first-generation wire-guided missiles, and the Force XXI Battle Command Brigade and Below (FBCB2) Battlefield Command Information System. The internal stowage was further improved and a thermal imaging system was added for the driver. The infantry squad was again increased to seven men, six of whom sat facing each other on two 3-man benches in the passenger compartment, with the seventh back in the position behind the turret. An MRE ('Meal, Ready-to-Eat') heater was added to the vehicle to assist in the preparation of food while in the field or warzone. With the retirement of the Dragon missile, the vehicle had the option of carrying some Javelin anti-tank missiles.[16]
M2A3[edit]
Introduced in 2000, the A3 upgrades make the Bradley IFV totally digital, with upgraded or improved existing electronics systems throughout improving target acquisition and fire control, navigation, and situational awareness. Also, the survivability of the vehicle is upgraded with a series of armor improvements, again both passive and reactive, as well as improved fire-suppression systems and NBC equipment.[17]
The A3 Bradley incorporates the Improved Bradley Acquisition Subsystem (IBAS) and the Commander’s Independent Viewer (CIV). Both include a second-generation forward looking infrared (FLIR) and an electro-optical/TV imaging system, and the IBAS also has direct-view optics (DVO) and the eye-safe laser rangefinder (ELRF).[18] The CIV allows the commander to scan for targets and maintain situational awareness while remaining under armor and without interfering with the gunner’s acquisition and engagement of targets.[19]
The A3’s fire control software (FCSW) combines laser range, environmental readings, ammunition type, and turret control inputs to automatically elevate the gun for range and to automatically generate a kinematic lead solution if a target is moving.[18] This functionality, very similar to that of the M1A2 Abrams, allows the gunner or commander to center the reticule on a moving target, lase the target, and achieve a first-round-hit, without the need to fire sensing rounds and adjust aim.[19][20] The FCSW incorporates a thermal aided target tracker (ATT) function that can track two targets in the FLIR field of view and switch between them, primarily intended for employing TOW missiles against moving vehicles.[20] The FCSW also allows the turret and gunner’s sights to be slewed automatically onto a target that has been designated with the CIV.[19]
The A3 Bradley uses a position-navigation subsystem that incorporates a global positioning system (GPS), an inertial navigation unit (INU), and a vehicle motion sensor (MVS),[18] which, in addition to allowing accurate own-vehicle navigation, allows accurate position reporting and hand-off of designated targets to other units via FBCB2.[20]
The Commander’s Tactical Display (CTD) presents information from FBCB2 and the vehicle navigation systems on a moving-map display, allows the commander to communicate via text over FBCB2, and allows him to check vehicle built-in test (BIT) information and access various other information.[20] The Squad Leader’s Display (SLD) in the infantry compartment improves the situational awareness of the passengers by allowing them to view navigational information from FBCB2 and imagery from the IBAS, CIV, or Driver's Vision Enhancer (DVE) to familiarize themselves with their surroundings prior to dismounting.[18]
The M2A3 Bradley II, and an M2A3 Bradley variant used in Iraq, were included in the GCV Analysis of Alternatives.[21]
M2A4[edit]
After the Iraq War, the Army began researching engineering change proposals (ECPs) for the M2 Bradley to buy back space, weight, power, and cooling capacity reduced by the addition of armor and electronics hastily added during combat. ECP1 will work to restore mobility and allow the vehicle to handle more weight. As weight increased, the Bradley got lower on its suspension, which reduced ground clearance. This decreased mobility on rough terrain and left it more vulnerable to IEDs. The effort will install lighter tracks, shock absorbers, a new suspension support system, and heavy weight torsion bars. ECP2 will restore automotive power with a larger engine, a new transmission, and a smart-power management system for better electrical power distribution to accept future networked tactical radio and battle command systems.[22][23] The first Bradleys upgraded with ECP1 were fielded in mid-2015, and the first to be upgraded with ECP2 will begin fielding in 2018.[24] Vehicles that receive both the ECP1 and ECP2 upgrade will be designated A4.[25]
On June 14, 2018 BAE Systems Land and Armaments was awarded a contract to produce up to 164 M2A4 and M7A4 Bradley Fighting Vehicles using existing M2A3, M7A3 and M2A2 ODS-SA Bradleys.[26]
M3 Bradley[edit]
M4 Command and Control Vehicle (C2V)[edit]
The C2V is based on the M993 MLRS carrier chassis (see below) and is designed to provide an automated tactical command post and operations centers. It was designed to replace the M113-based M577A2 Command Post Carrier.[37] Mass production was cancelled in late 1999. Around 25 vehicles were finally produced for the US Army.[38]
Bradley Stinger Fighting Vehicle (BSFV)[edit]
The BSFV is designed specifically for the carriage and support of a Stinger MANPADS team. The MANPADS-Under-Armor (MUA) dismounted Stinger team concept of the BSFV left the operators exposed, so it was replaced by the M6 Linebacker, which also retained the dismounted Stinger missile capability.[39]
Warhammer Bradley[edit]
Modified M2A2 ODSs with the TOW missile system replaced with a two-tube Javelin Missile System, and Integrated Sight Unit modifications for increased antitank lethality, without the need to continually track the target.[40]
M6 Linebacker[edit]
An air defense variant, these vehicles are modified M2A2 ODSs with the TOW missile system replaced with a four-tube Stinger missile system. From 2005 to 2006, M6 Linebackers had their Stinger missile systems removed and were converted to standard M2 Bradley ODS IFVs.[41] By 2017, the Army was exploring reintroducing air defense Bradleys with the reemergence of hostile aerial threats.[42] In October 2017, BAE displayed an updated version of the Bradley Linebacker called the M-SHORAD (Mobile Short-Range Air Defense) equipped with the pMHR search radar mounted around the turret, a fire-control radar, a jammer on top of the turret to non-kinetically defeat unmanned aerial vehicles (UAVs), the main gun replaced with an XM914 30 mm autocannon with airburst rounds, and a missile launcher that could accommodate various missiles including the Stinger, AIM-9X Sidewinder, or others.[43][44][45] The Army chose to create an M-SHORAD vehicle out of the Stryker instead of the Bradley; although the tracked Bradley has better mobility on soft ground, the wheeled Stryker has sufficient mobility to perform tactical air defense while also having greater weight, space, and electrical power capacity to make upgrades.[46]
M7 Bradley Fire Support Vehicle[edit]
The B-FiST has replaced the existing armored FiST vehicle (FiST-V) platform, the M981 FISTV, in the U.S. Army inventory. The TOW/UA suite is replaced by target location equipment, integrated with the Bradley ISU sight unit. It also carries equipment for use by dismounted observers. A hybrid GPS/inertial/dead reckoning navigation system robustly provides the vehicle location as a reference point.
Bradley Engineer Squad Vehicle[edit]
The Bradley ESV enables engineer assets to maintain momentum with the main force while conducting engineer and sapper operations. The ESV is equipped with standard combat engineering equipment and can employ unique mission equipment packages for obstacle neutralization.[47]
Bradley Battle Command Vehicle[edit]
The Bradley BCV allows brigade commanders to move around the battlefield away from their command post. The BCV integrates an enhanced command and control communication suite to maintain digital interface with maneuver forces and the Tactical Operations Center.[47]
M993/M270 Multiple Launch Rocket System Carrier Vehicle[edit]
The M270 MLRS is composed of two major sections, a M269 Launcher Loader Module mated to a M993 carrier vehicle.[48] The M993 carrier vehicle portion is a modified BFV chassis.[49]
Black Knight[edit]
The Black Knight prototype unmanned ground combat vehicle being developed by BAE resembles a tank and makes extensive use of components from the Bradley Combat Systems program to reduce costs and simplify maintenance. It is also designed to be remotely operated from a BFV commander's station while riding mounted, as well as being controllable by dismounted infantry.[50][51]
Armored Multi-Purpose Vehicle[edit]
For the U.S. Army's Armored Multi-Purpose Vehicle (AMPV) program to replace the M113, BAE offered a variant of the Bradley. The AMPV submission is a turretless Bradley chassis, providing greater cargo space, increased armor, and upgraded engine and electrical systems. For increased protection, a V-shaped bottom replaces the flat base. The AMPV also has several modular roof sections to adapt to each role. For fuel efficiency, BAE is considered using a hybrid-electric drive, similar to their GCV IFV. It was suggested that surplus Bradleys could be retrofitted into this version.[52][53]
BAE said they have the capability to build up to eight AMPV platforms per day, the same as the Bradley during the height of its production, as both vehicles share the same production line and supply base.[54] A mortar carrier vehicle can be converted from the original Bradley in 40 days.[55] Underbody blast tests demonstrated that AMPV survivability requirements could be met with a Bradley platform.[56] BAE projected their AMPV submission to have similar operating costs to the M113 and lower costs than an M2 Bradley, as the platform's most expensive components are related to the omitted turret.[57] To better accommodate modern electronics, the turretless Bradley has 78% more internal space than the M113, and two 400-amp generators.[58]
BAE Systems rolled out the first AMPV prototype on 15 December 2016. Currently, 160 vehicles are budgeted to be produced per year, which is enough to field one and a half brigades.[59]
